5,200 Litre Stainless Steel Pressure Vessel
Specification
| Condition | Used |
|---|---|
| capacity | 5200 |
| Capacity Type | Litres |
| manufacturer | Sinclair Stainless |
| Build Year | 2003 |
| material | Stainless Steel |
Description

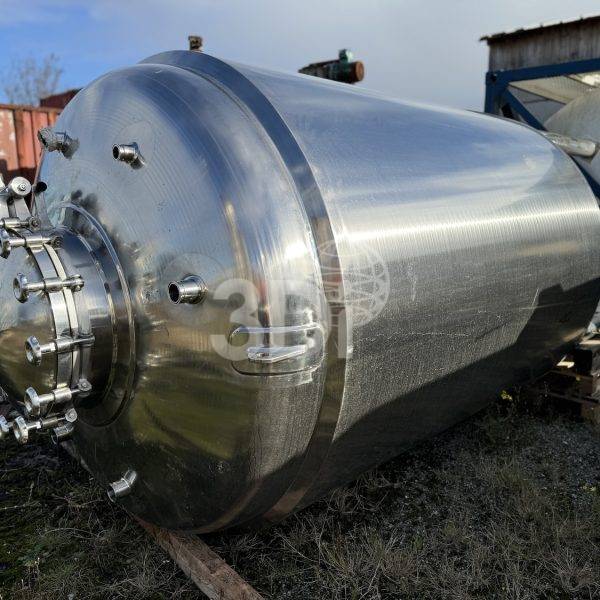

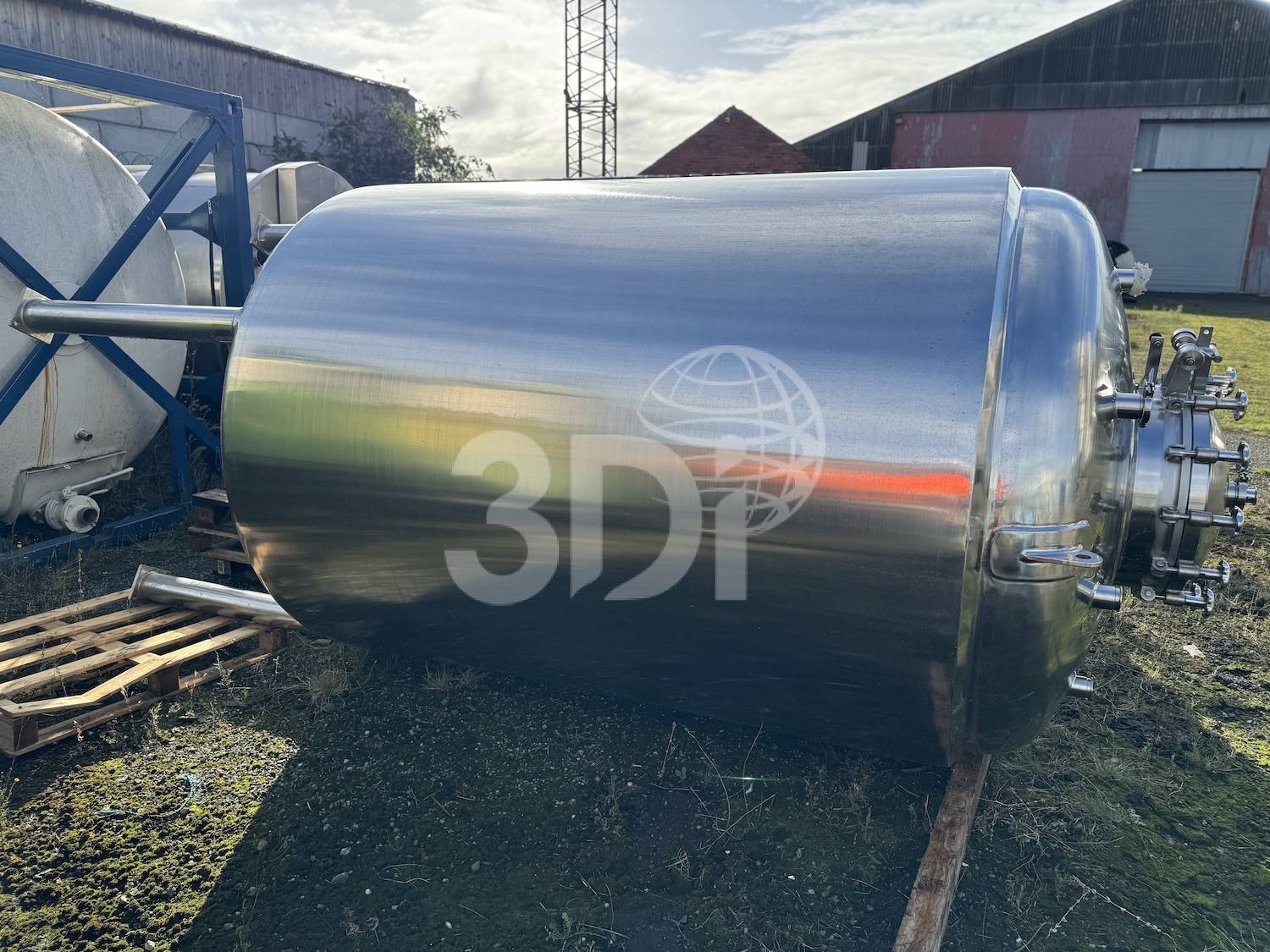

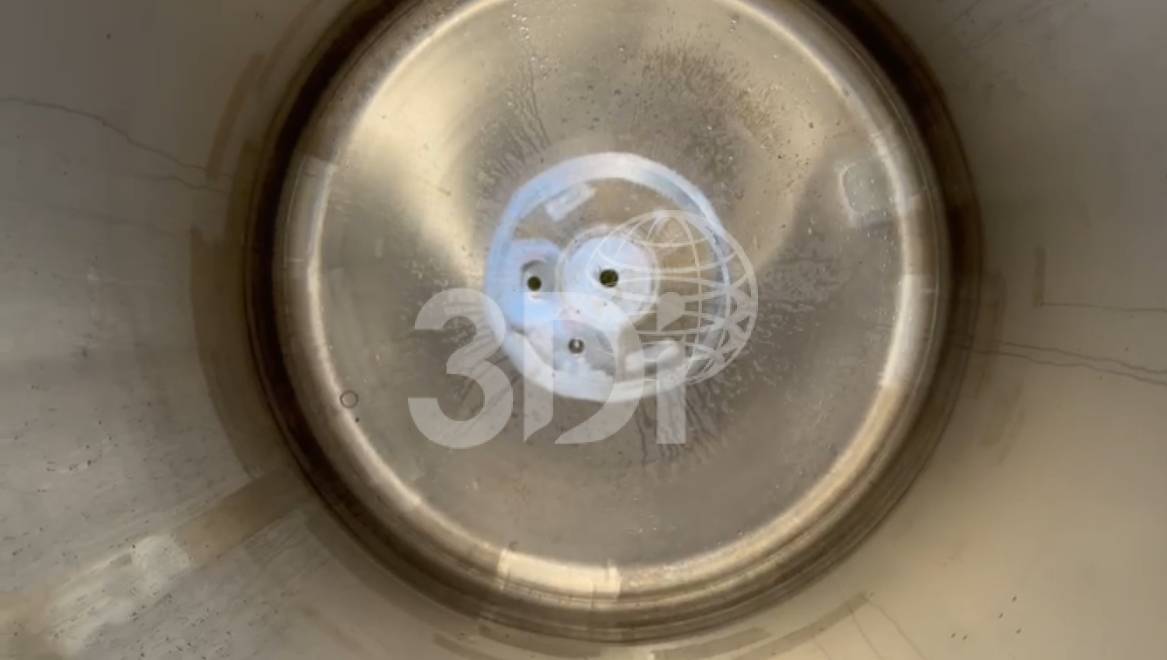

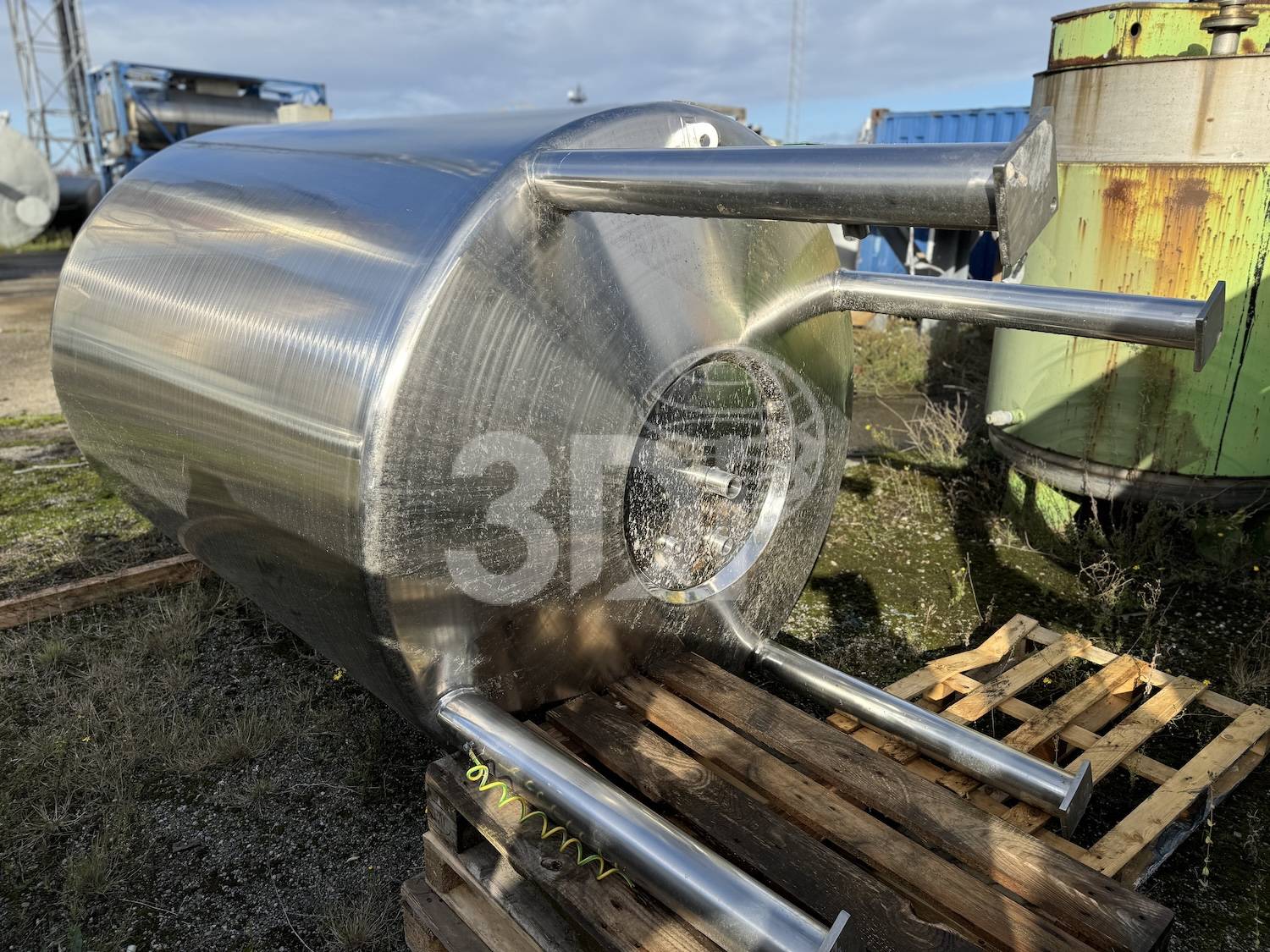

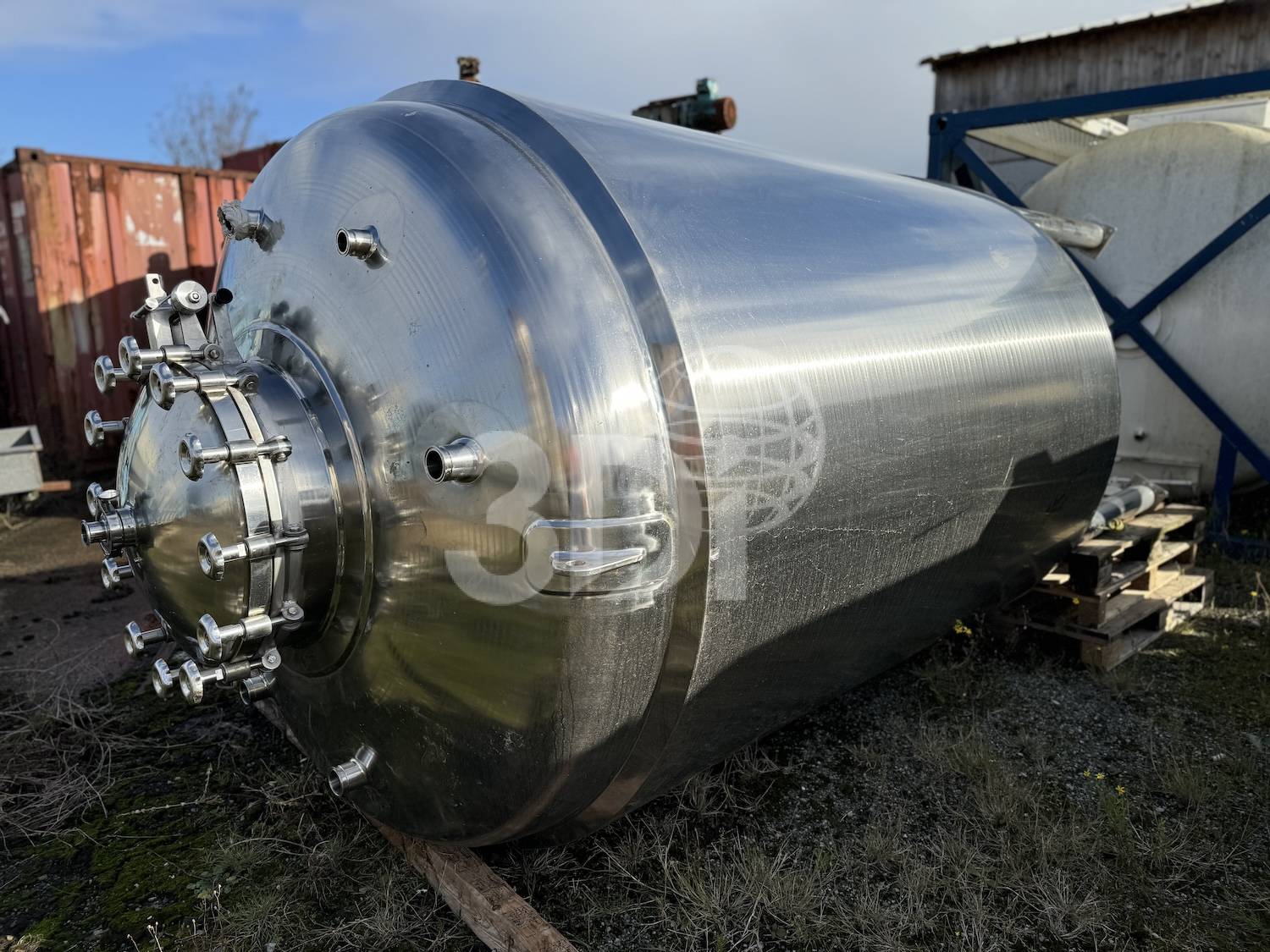

Used 5,200 Litre Stainless Steel Pressure Vessel, manufactured by Sinclair Stainless Fabrication Ltd, 2003. Material of construction stainless steel. Orientation vertical, cylindrical, dished top and bottom. The vessel is supported by 4 stainless steel legs. The vessel is insulated and clad in stainless steel. Design code ASMEV111DIV1 & PED97/23/EC MODULE G Gas group 1, construction category 2. Design pressure 6 bar g/FV, design temperature 0-200degC, test pressure 8.25 bar g. Dimensions 1800mm overall diameter, 2150mm on the straight, 3900mm overall height, outlet to the floor 850mm. Connections 1 x 65mm hygienic centre bottom outlet, 600mm top centre maintenance door with CIP connection and spray ball, 6 x 50mm hygienic top inlets, 1 x 35mm hygienic top inlet. The pressure vessel is fitted with two top lifting points and bottom tailing point. Previously used to store water.
