600 Litre Jacketed Stainless Mixing Vessel

Specification

Condition	Used
capacity	600
Capacity Type	Litres
manufacturer	Defabs
Build Year	2002
material	Stainless Steel

Description

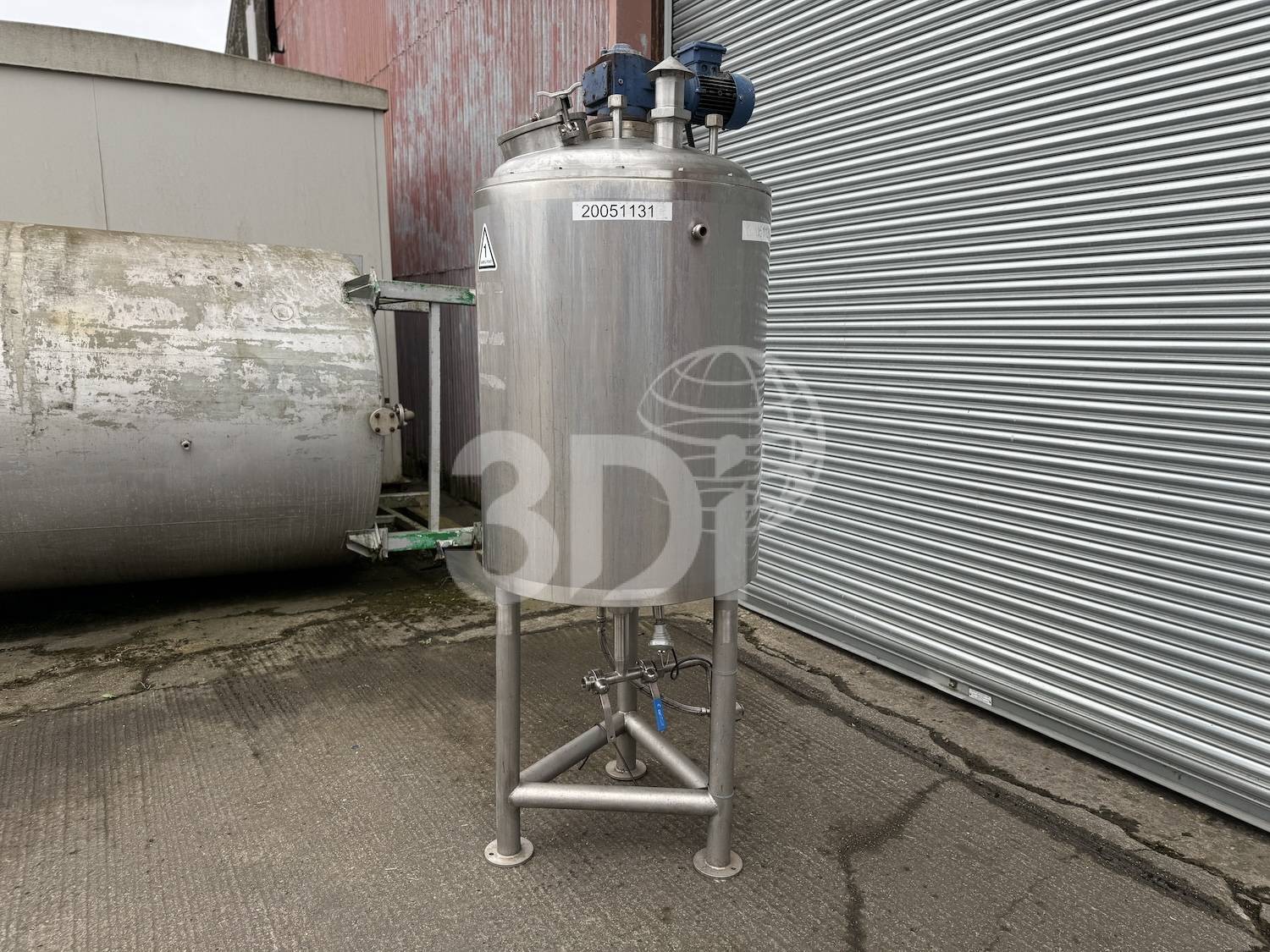

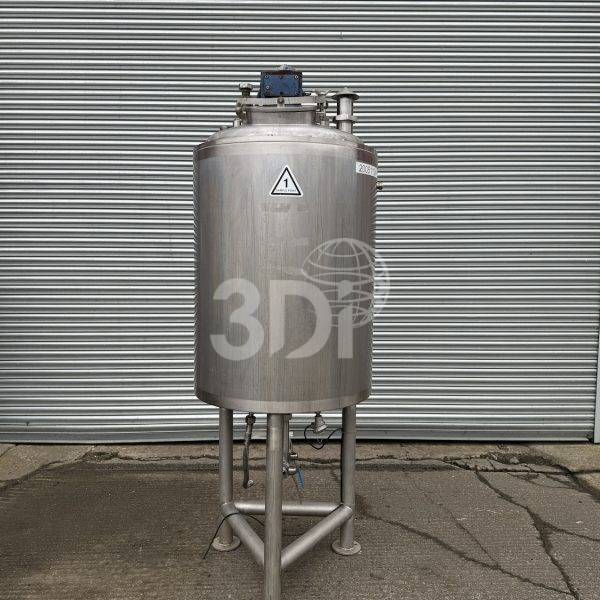

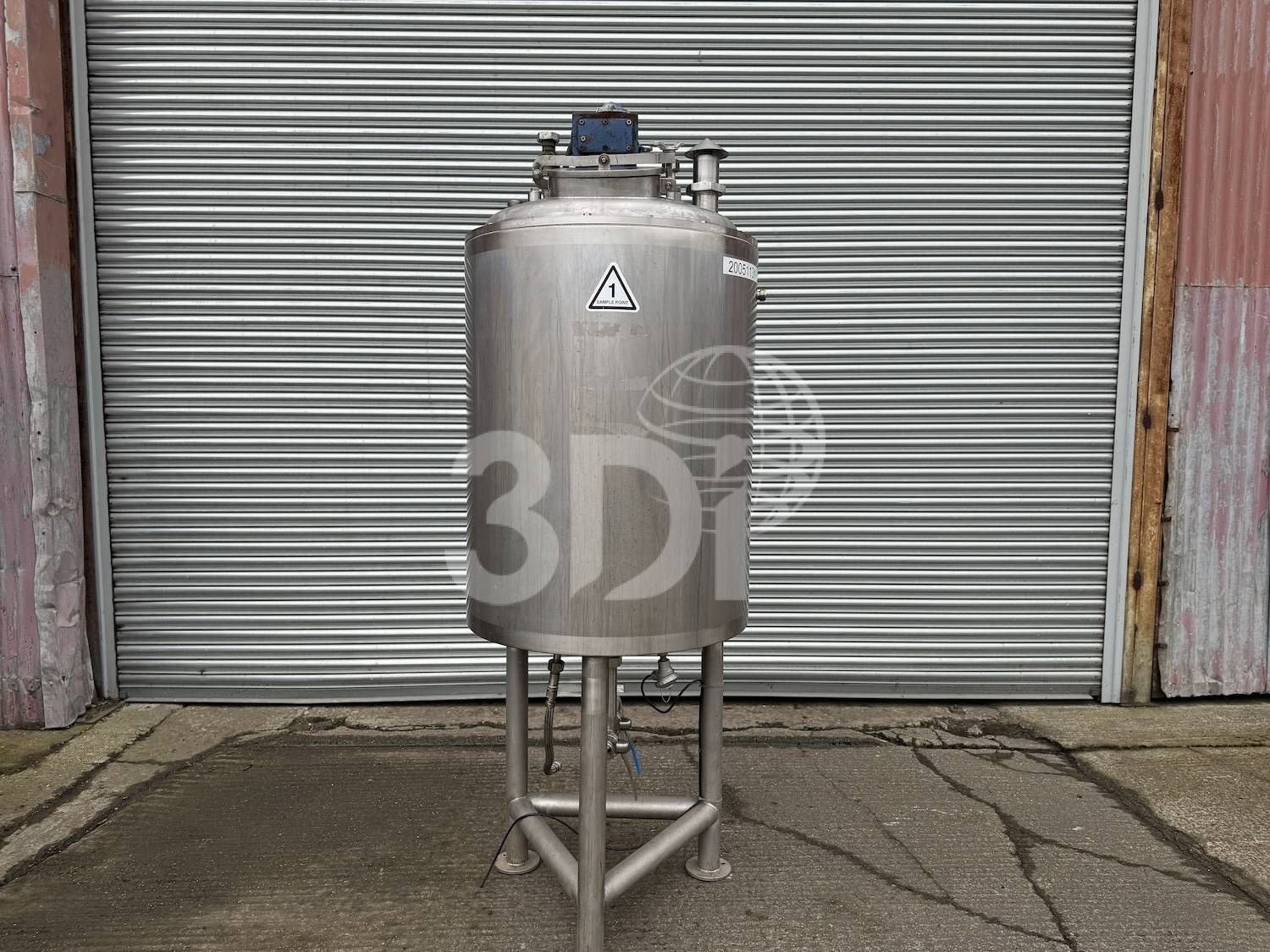

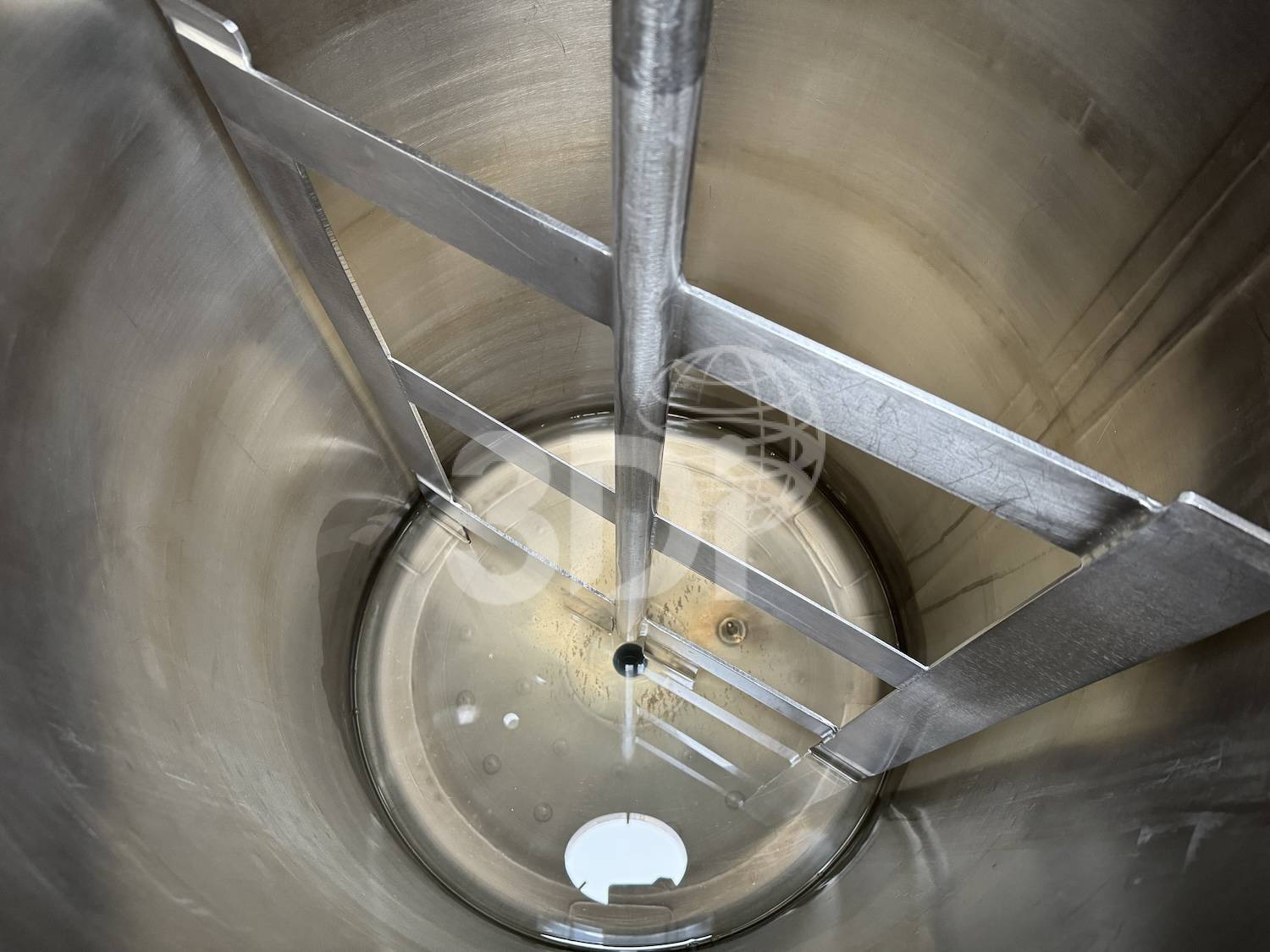

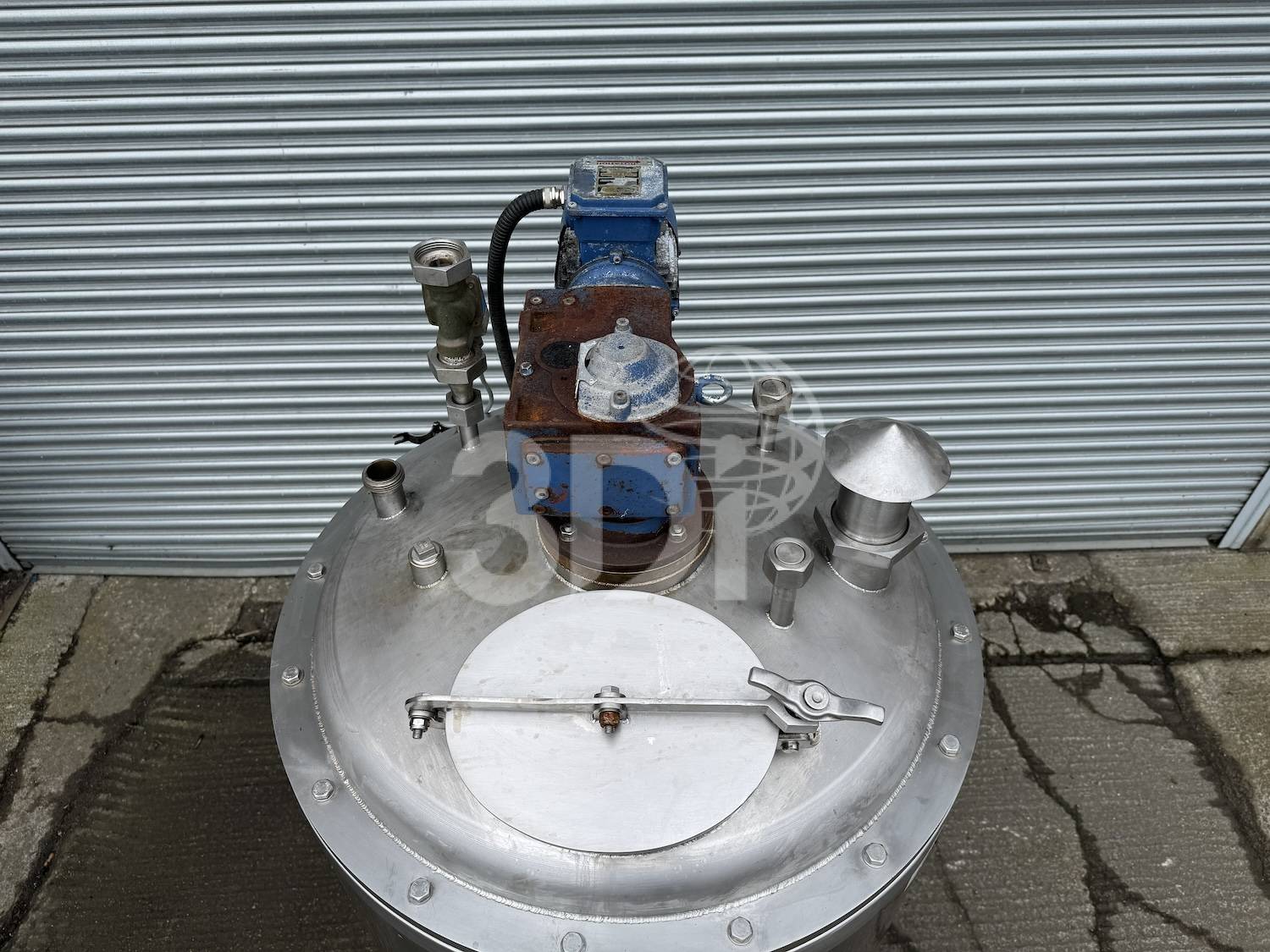

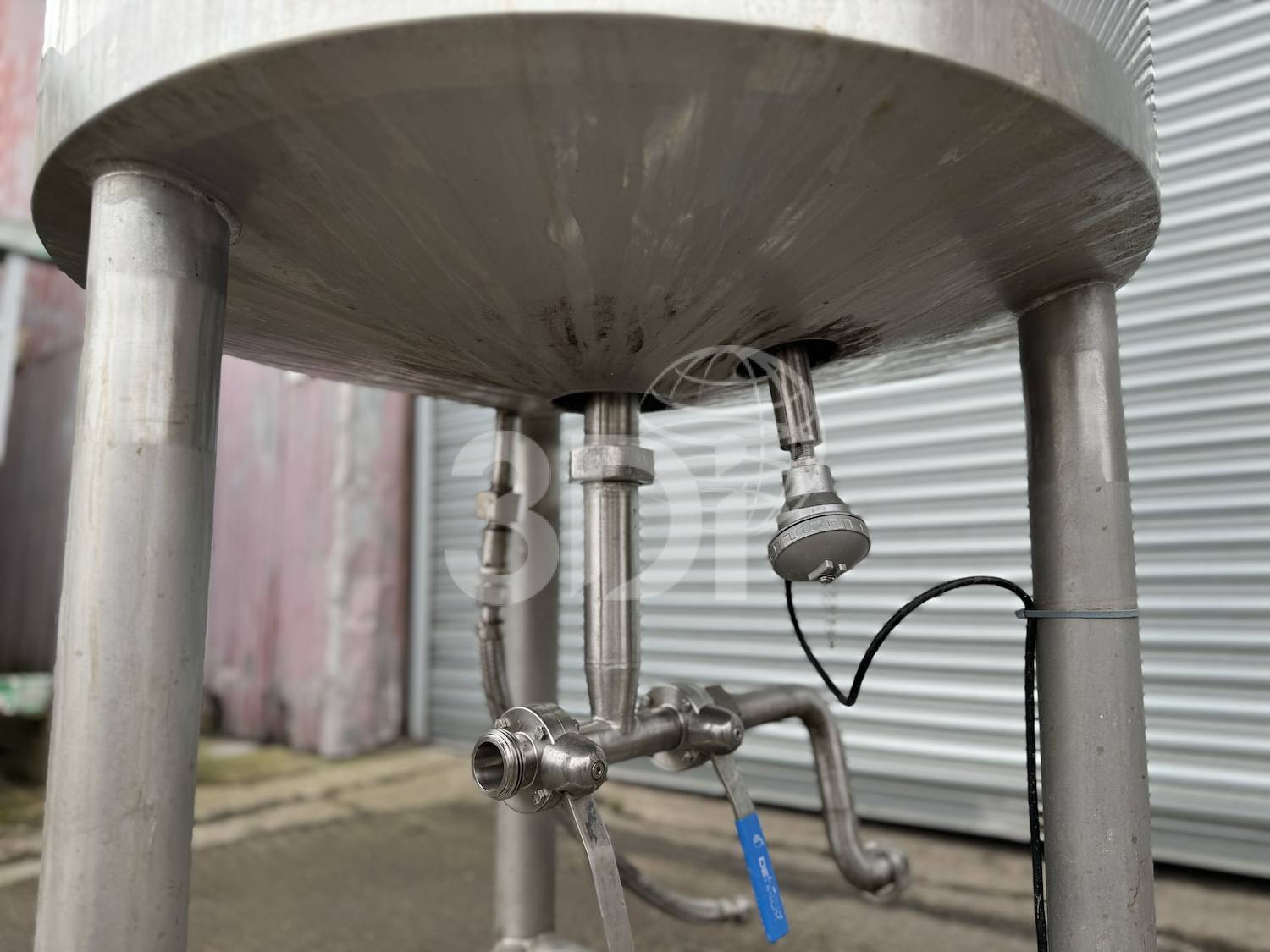

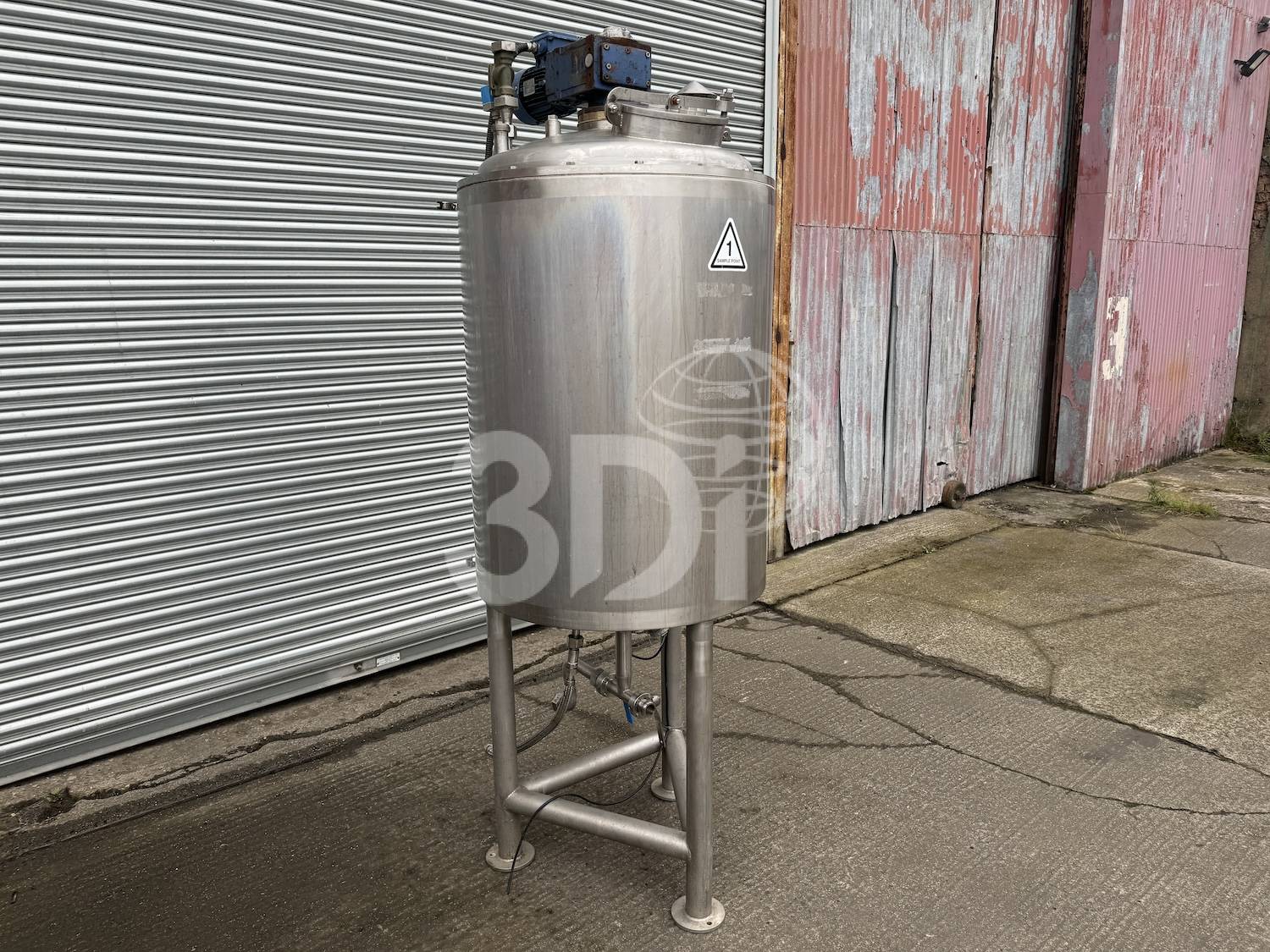

Used 600 Litre Jacketed Stainless Mixing Vessel, manufactured by Defabs Engineering Systems Ltd, 2002. Material of construction stainless steel. Orientation vertical, cylindrical, dished ends. Supported on 3 stainless steel legs. Vessel dimensions 2500mm overall height, 860mm overall width, 750mm internal diameter, 1100mm on the straight. Connections 2inch centre bottom outlet, 300mm elliptical top man way. Vessel working pressure & test pressure static head, jacket working pressure 2 bar, jacket test pressure 3.5bar. The vessel is fitted with a top mounted stainless steel gate/anchor type impeller powered by a Nord gearbox and 0.55kw Nord electric motor (3ph, 50/60hz, 230/260v, 1375/1650 l/min). Previously used in the food industry.
