Stock #1670
1 In Stock
Pfaudler Glass Lined Reactor Body Series E
Specification
| Condition | Unused |
|---|---|
| capacity | 6000 |
| Capacity Type | Litres |
| manufacturer | Pfaudler |
| material | Steel – Glass Lined |
| industry | Chemical |
Description

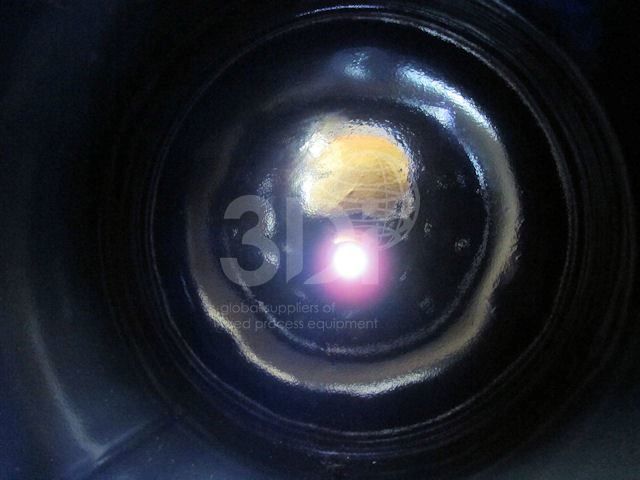

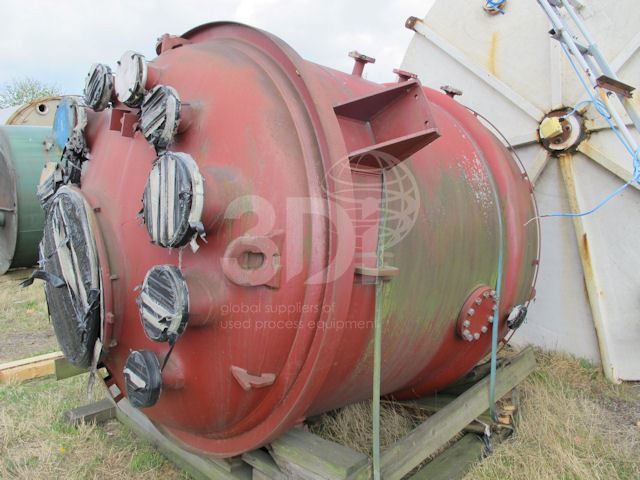

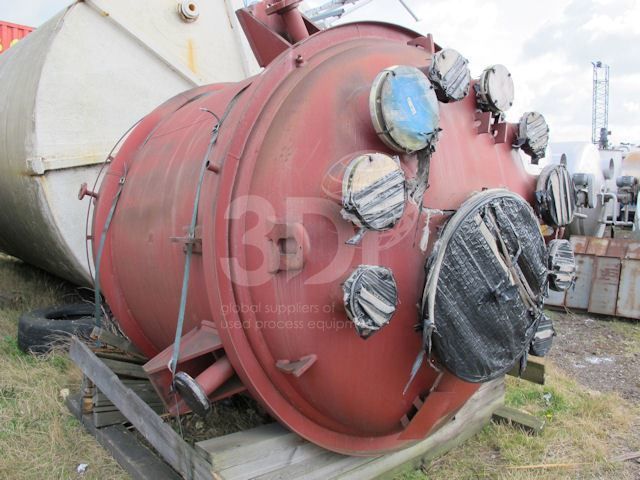

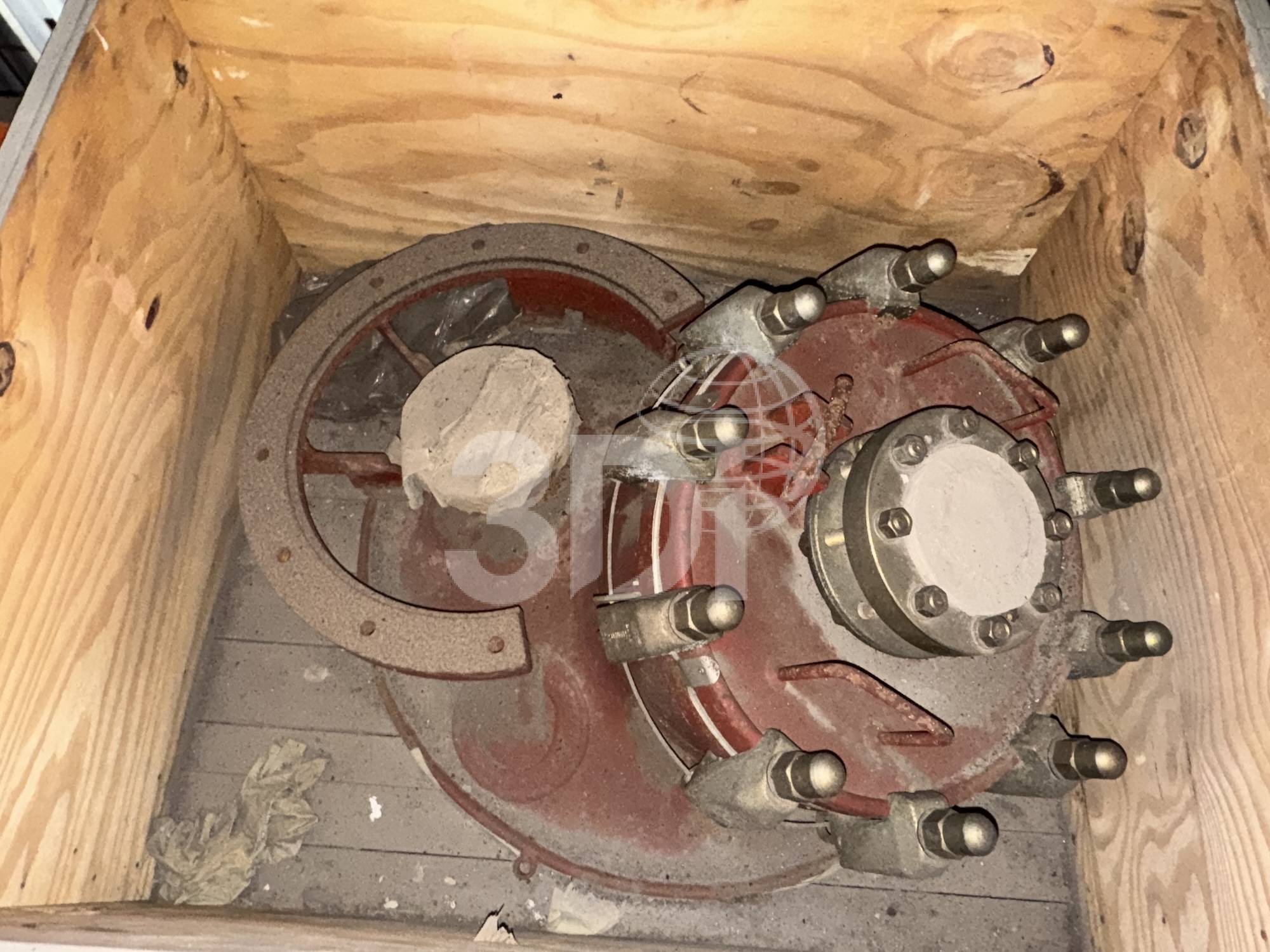

Unused Pfaudler Glass Lined Reactor Body Series E, manufactured by Pfaudler. Capacity approx 6000 litres. Glass lining WWG blue 9119. Reactor design data 6 bar full vacuum, 6 bar jacket. Dimensions: 1940mm internal diameter, 1750mm on the straight, 2100mm overall diameter, 3000mm overall height (not including top lid). Connections 1 x 775mm top inlet for lid, 5 x 100mm top inlet, 2 x 150mm top inlet, 2 x 200mm top inlet, 1 x 100mm bottom outlet. The reactor is complete with glass lid. Reactor comes with a internal spark test certificate.
