8,740 Litre Stainless Steel Storage Tank


8,740 Litre Stainless Steel Storage Tank
Specification
Description

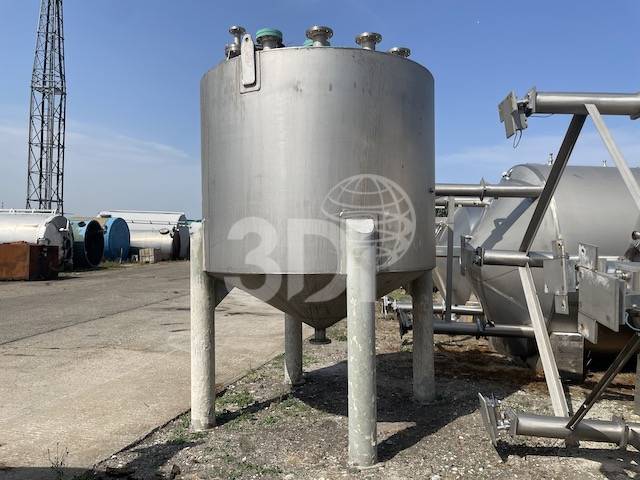

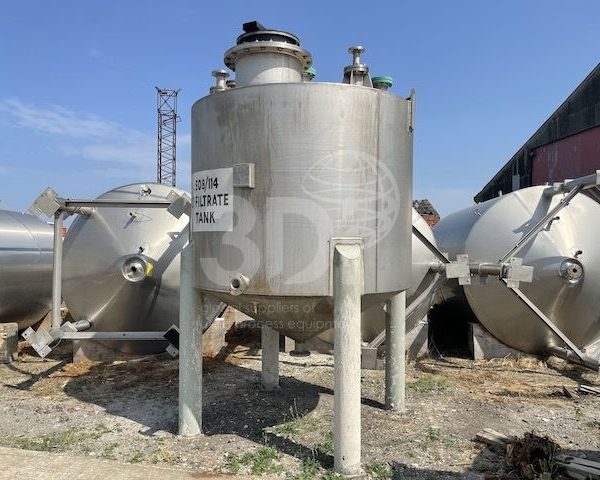

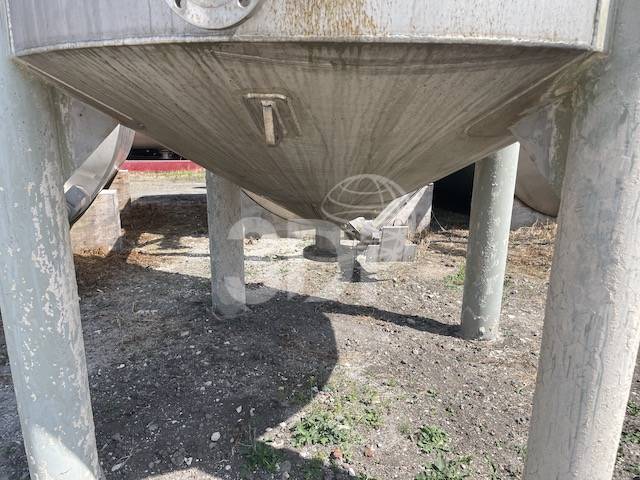

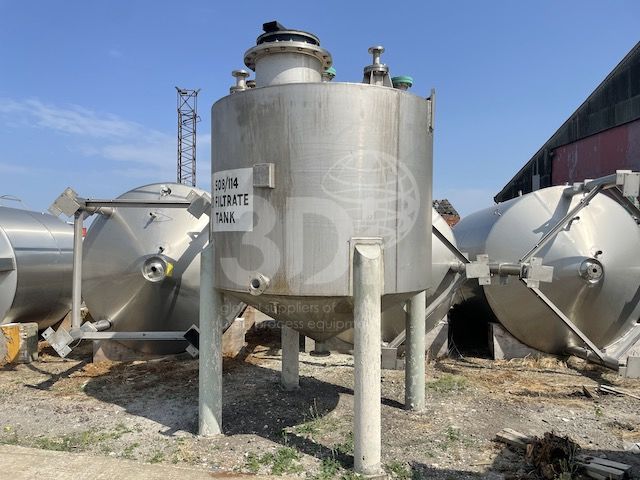

Used 8,740 Litre 316L Stainless Steel Storage Tank, built by Bibbys of Halifax, 2007. Material of construction: 316L grade Stainless Steel. Vessel thickness: 5mm cones, 4mm shell. Orientation: vertical, cylindrical, coned top and bottom, on legs. Dimensions: 2300mm internal diameter, 1770mm on the straight, 625mm bottom cone, overall height 3695mm. Connections: 100mm (4″) bottom outlet, 150mm (6″) top inlet, 600mm (24″) top manway. Design Data: design pressure: +0.05/-0.01bar, design temperature: +60/-10degC. Working volume: 8000 Litres. Previously used on chemicals.
