Innomag TB-MAG Magnetic Drive Pump E1-TB050-032-160A


Innomag TB-MAG Magnetic Drive Pump E1-TB050-032-160A
Specification
Description

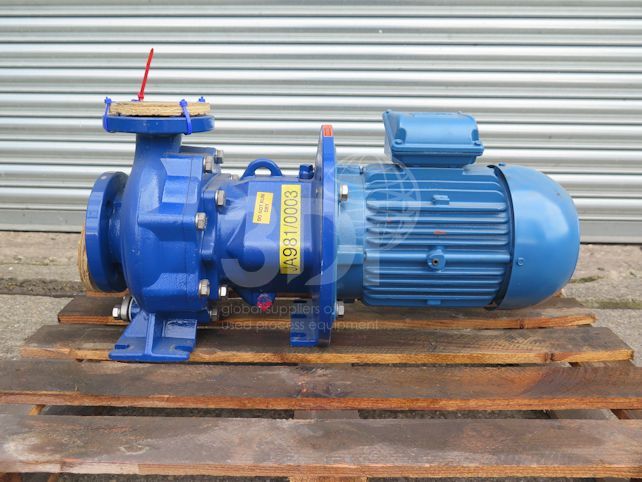

Unused Innomag TB-MAG Magnetic Drive Pump E1-TB050-032-160A, manufactured by Flowserve, 2017. Type Innomag TB-MAG Sealless Pump, Model E1-TB0505-32-160A, Serial no. 64382, flow rate 9.0 m3/hr at 20m head, impeller diameter 129mm, maximum 169mm, 50mm suction nozzle, 32mm discharge nozzle. Pump casing ductile iron ETFE lined, impeller CF-ETFE. Pump is powered by a 3kw WEG Electric Motor (3ph, 50hz, 2900rpm). Pump was designed to pump 75% Phosphoric acid. Pump weight 118kg.
